Product Description:

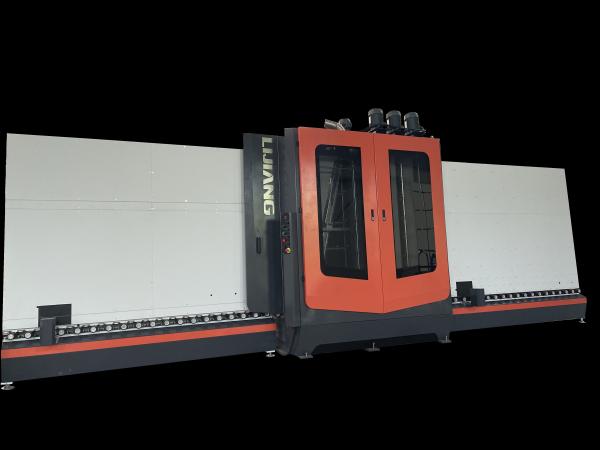

Insulating Glass Production Line
We offer an Insulating Glass Production Line that is reliable and efficient. This production line is powered by 380V/50Hz and can process insulated glass of maximum size 2500mm X 4000mm. The dimensions of the production line are 13000mm X 3000mm X 2800mm and it is capable of processing insulated glass of minimum size 450mm X 300mm. This insulated glass production line is equipped with advanced production equipment and it is designed to ensure a highly efficient and reliable production process. It is also equipped with a number of safety features to ensure the safety of operators. This insulated glass production line is ideal for producing insulated glass in a fast and cost-effective manner.
Features:
- Product Name: Insulating Glass Production Line
- Options: Pre-washing
- Glass Type: Low-E, Tempered, Laminated
- Power Supply: 380V/50Hz
- Glass Size: Max 2500mm X 4000mm
- Vacuum System: Available
Applications:
The Insulated Glass Production Line from LIJIANG GLASS is the perfect equipment for producing insulated glass. The model number LJBZ3370 is designed with a PLC Control System to guarantee a high standard of operation and production quality. This production line can process Low-E glass, Tempered glass and Laminated glass with a minimum speed of 0.5m/min. The heating system is also available, making the production process more efficient. This production line is 13000mm in length, 3000mm in width and 2800mm in height. This equipment is perfect for producing high-quality insulated glass products and is offered at a competitive Insulated Glass Production Line Price. Choose LIJIANG GLASS for your insulated glass production needs and experience the difference.
Technical Parameters:
| Product Feature |
Details |
| Dimensions |
13000mm X 3000mm X 2800mm |
| Heating System |
Available |
| Power Supply |
380V/50Hz |
| Glass Type |
Low-E, Tempered, Laminated |
| Weight |
7000Kg |
| Max Speed |
2.5m/min |
| Glass Thickness |
3-25mm |
| Min Glass Size |
450*300mm |
| Options |
Pre-washing |
| Min Speed |
0.5m/min |
Customization:
Insulating Glass Production Line– Customized Service from LIJIANG GLASS
LIJIANG GLASS offers a custom-made Insulating Glass Production Line with model number LJBZ3370. It is manufactured in China and has a minimum glass size of 450*300mm. The insulated glass production line is designed to process Low-E, tempered, laminated glass, and weighs 7000Kg. It is powered by 20KW and is equipped with a heating system.
Our professional team is committed to providing you with the most appropriate and efficient Insulating Glass Processing Line, Insulated Glass Production Equipment and other customized solutions according to your specific requirements. We provide on-site installation and technical support services to ensure your production line runs smoothly.
Packing and Shipping:
Packaging and Shipping:
The Insulating Glass Production Line will be packaged and shipped in standard containers with the necessary accessories and instructions. The containers will be sealed to protect the product from any external damage. The Insulating Glass Production Line will be shipped to the customer's designated address.
