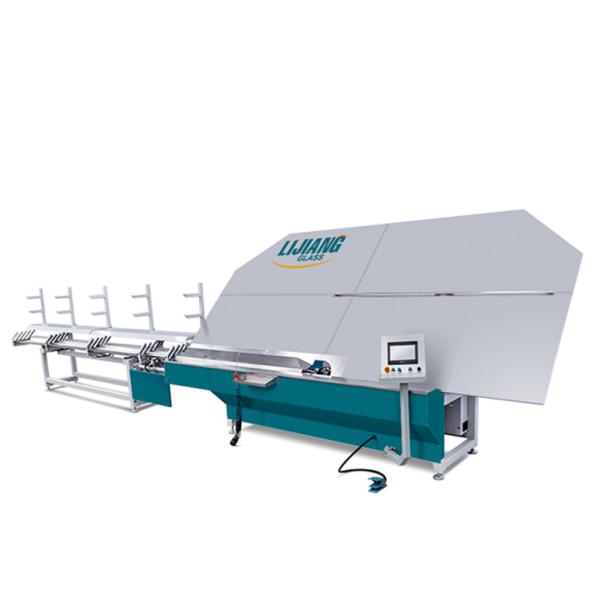

Full Automatic Insulating Glass Spacer Bar Bending Machine for double glass making
Overview of Automatic Insulating Glass Spacer Bar Bending Machine
Automatic Insulating Glass Spacer Bar Bending Machine is used to make the different shape and different sizes of frames for pressing inside the Insulating glass by automatically with PLC control. The bending machine can bend normal aluminum spacers , stainless steel bars (SS) and warm edge spacer bars (plastic bars) by different bending tools. The spacer width can be from 6mm - 27mm. The bending machine can bend for 8 different shapes, such as circle.
Main performance features of Spacer Bar Bending Machine
1. It can set 4 specifications and 32 sizes (8 for each specification) of the original glass sheet size data. The bending machine automatically calculates the aluminum frame data according to each size for sorting, continuous processing, greatly improving efficiency and speed.
2. In addition to start stop operation, all operations are completed on the touch screen, and the mobile operation platform is available. Chinese / English or other languages operation interface, easy to operate, natural, easy to understand.
3. The CNC bending angle control system is adopted, with an adjustable accuracy of 0.1 °.
4.The CNC servo feeding system is adopted, and the adjustable precision of aluminum frame size is 0.1M m/m
5. There is no tailing design, except for cutting loss, zero head processing can be realized.
6. There are four automatic storage tanks, which can store 4-6m aluminum strip materials of four specifications.
7. It has the function of high-speed automatic continuous cutting of aluminum strip.
8. The bending speed shall be adjusted automatically according to the size of aluminum frame to avoid deformation of large frame and ensure high-speed and continuous small frame.
9. The aluminum spacer bar is automatically connected, and the aluminum strip joint is designed with intelligent avoidance (to avoid bending or cutting to the joint part).
Optional functions :
1. Printing logo and data on spacers with ink.
2. With ERP function
3. Printing label with 3 sizes one the paper sticker
4. Bending different shapes
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters:
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND
|
