Desiccant filling machine
Products Description
The desiccant filling machine can automatically complete the drilling operation in the gasket frame, filling desiccant and sealant. The control system of the desiccant filling machine is produced by the German Siemens company, so the rapid drip and stable operation ensure the quality of the glass bottle, which can ensure the quality of the glass bottle in the entire process.filling machines and equipment.
Technical parameter
Filling aluminum frame’s maximum size | 2000mm*2000mm |
Filling aluminum frame’s minimal size | 300mm*250mm |
Article aluminum specifications | 5.5-24mm |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1.8KW |
Molecular sieve diameter needed | 0.5-0.9mm |
Dimension | 1300mm*1100mm*3650mm |
Adopt Siemens PLC control system
Touch screen interface,easy operation
The height can be adjusted according to the size of spacer frame
Automatically loading and replenish desiccant
Filling time can be adjusted
Automatically drilling,filling and sealing
Core parts are imported brands
Details display

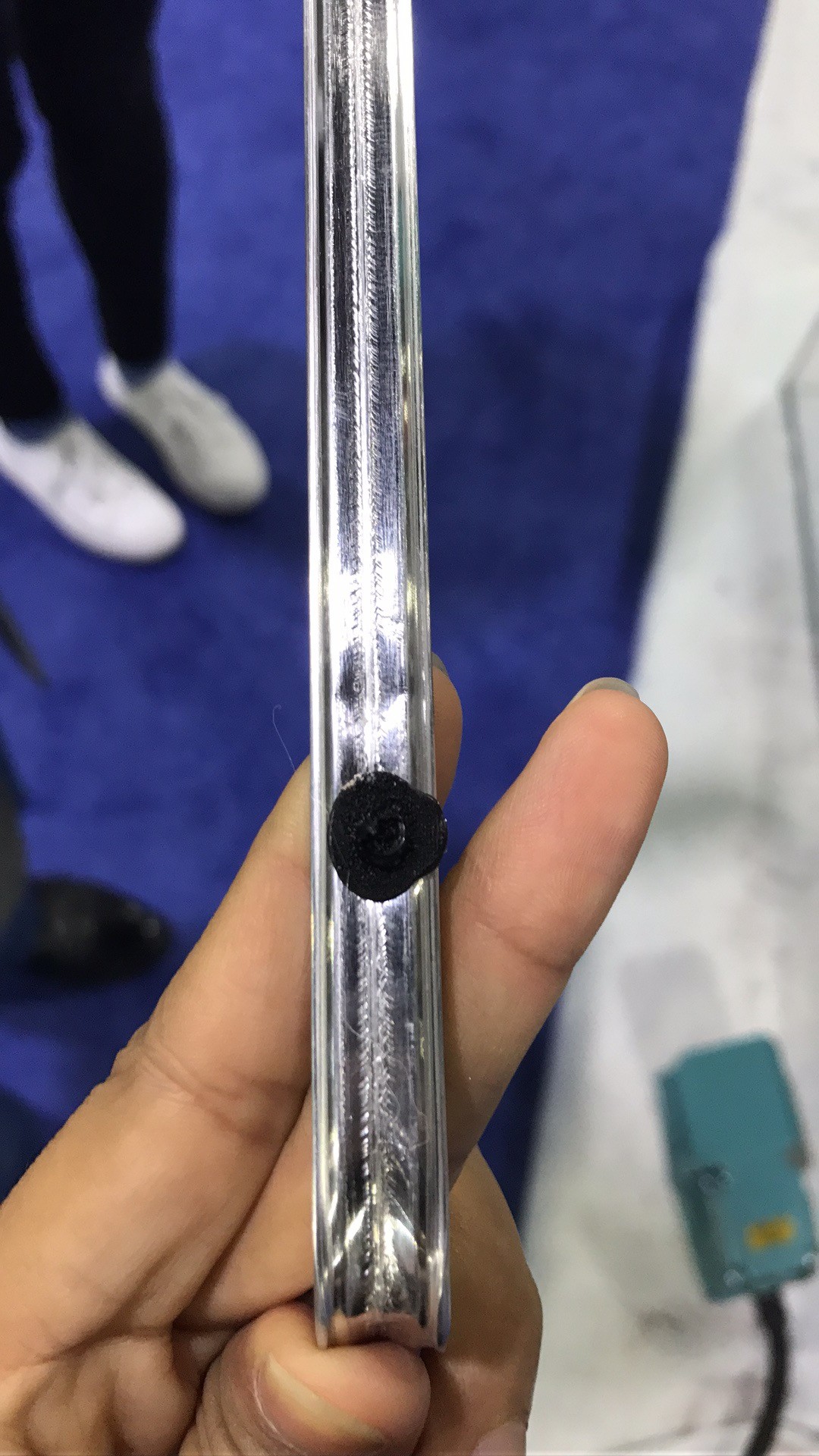

1.Auto drilling, filling and sealing function
automatic filling machine
2.Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen.
3.All spare parts have ID Number for offering the convenience in after sales service.

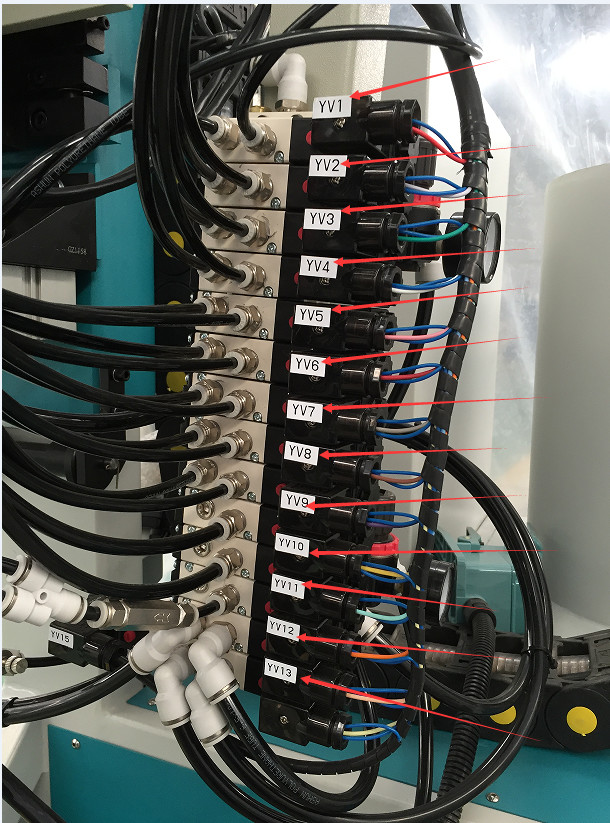

4.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
Company introduction
Jinan Lijiang Automation Equipment Co., Ltd. (Lijiang Glass Factory) is located in the beautiful spring city of Jinan. It is an enterprise integrating R & D, sales and service of glass processing equipment. Due to the proximity to the Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to drawing on the experience of famous experts, establishing a research and development center, cooperating with well-known domestic and foreign enterprises, introducing advanced technology, etc., and is committed to building high-grade insulating glass machinery and equipment. . Now, our friendly partners include Northern Glass, Xinfuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Haojing, Sichuan Lihehua and other well-known enterprises. Since the establishment of the company, our products have been exported to nearly 30 countries and regions in Europe, America, South America, Middle East, Southeast Asia, India and so on.
At the same time, the company cooperates with North China Industrial Group, Shandong University and other well-known domestic research institutions to continuously improve the level of technical research. So far, we have independently produced vertical automatic insulating glass production line with filling gas, vertical insulating glass sealing robot, automatic interval bending machine, automatic dehumidifying filling machine and new automatic butyl rubber extruder The quality has reached the highest level of leadership in China.
With the rapid development of the insulating glass industry, Lijiang looks forward to working with you for a win-win situation and a world of innovation.
